Article No. VK-62504

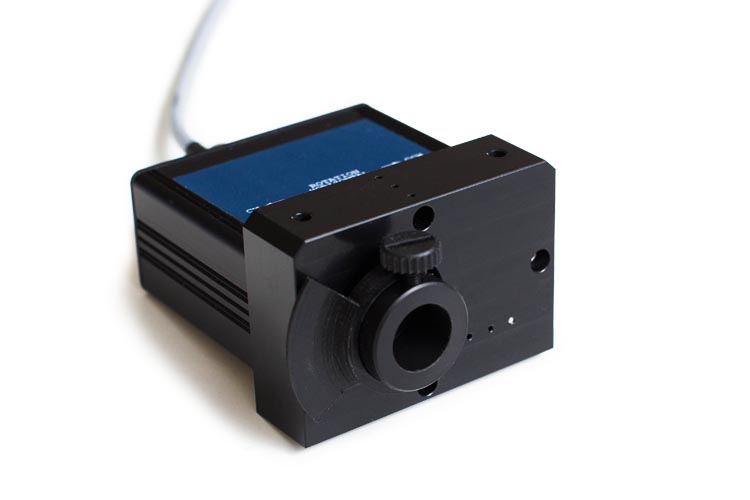

Rotation scanner horizontal
to align hydrophones or ultrasonic transducers in the sound field in a horizontal plane
The rotation scanner is used to align hydrophones or ultrasonic transducers in the sound field in a horizontal plane.In particular, the scanner enables the directional characteristic of transducers and hydrophones to be determined in an angular range of +/- 35° with a positioning accuracy of < 0.1°. The SFS631R controller (VK-62502) is available for positioning and automating the rotation scanner. In combination with the vertical rotation scanner, any solid angle can be positioned in the direction of sound.
