Pintip hydrophone

Art.-No.: VK-43002

Pintip hydrophone PTH 0.5 mm – 20 MHz

Art.-No.: VK-43003

Pintip hydrophone PTH 0.5 mm – 50 MHz

Art.-No.: VK-43004

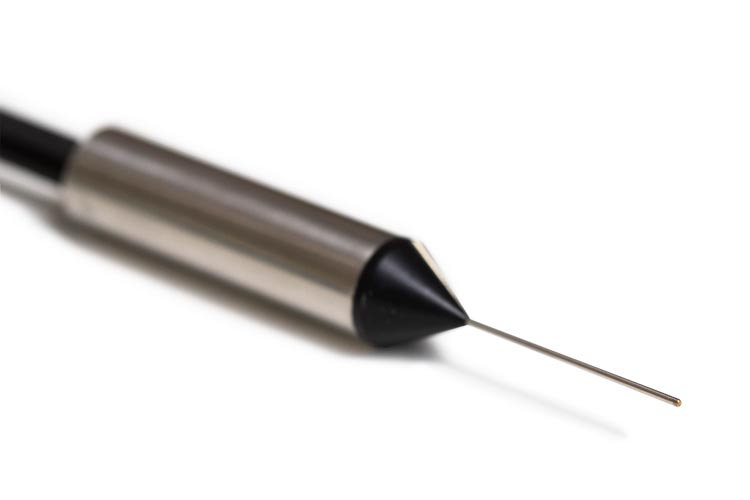

The PTH-0.3-50 ultrasonic hydrophone from the piezo tip hydrophone series is the ideal solution for the precise characterization of ultrasonic fields. Thanks to its ceramic sensor element and the innovative use of a thin ceramic film, this hydrophone offers high sensitivity, an excellent signal-to-noise ratio and an impressive bandwidth of up to 50 MHz. With a sensor element diameter of just 300 µm, it also guarantees a high spatial resolution – perfect for demanding measurement tasks.

Versatile application possibilities

The PTHxx-0.3-50 pintip hydrophone is ideal for developing and testing ultrasonic transducers, for determining sound pressure, acoustic intensity and power in accordance with the IEC 61157 and IEC 62127 standards for medical ultrasonic devices and for measuring the field distribution of NDT transducers. It is particularly suitable for the detection of small ultrasonic signals with limited bandwidth or CW signals in the medium MHz range.
Whether in medical technology or non-destructive material testing (NDT) – this ultrasonic hydrophone delivers reliable results and supports you in the development of high-quality ultrasonic technologies. Thanks to its robust design and technical sophistication, it is the first choice for professionals who value quality and precision.

Using the PTH-0.3-50

The piezo hydrophones in the PTHxx-0.3-50 series impress with their robust design, simple handling and high signal-to-noise ratio. This makes them ideal for measurements under difficult EMC conditions. Thanks to the size of the active element and the frequency range, the hydrophones are particularly suitable for measuring sound emission in the following applications:
– Ultrasonic devices for cosmetic purposes
– Ultrasound therapy devices
– Ultrasound Doppler devices (e.g. vascular and fetal Doppler)
– Cosmetic HIFU devices (e.g. for lipolysis)
(Note: When measuring HIFU signals, care must be taken to avoid cavitation, as this can lead to permanent damage to the hydrophone).

Technical highlights

– Integrated preamplifier: Enables direct connection to an oscilloscope with a 50 ohm terminating resistor.
– High interference immunity: Ideal for use under difficult EMC conditions.
– Compact design: Perfect for precise measurements in demanding environments.

Scope of delivery

Hydrophon 0.3 mm with preamplifier / line driver, cable and BNC connector

Technical specifications

Model number: PTHxx-0.3-50 (xx – serial number)
Sensitivity (typ.): 0.3 V/MPa (@ 20 MHz)
Usable frequency range: 0.5 MHz – 50 MHz
Active element: 0.3 mm, PZT foil
Amplifier: Integrated preamplifier / line driver (1 dB)
Cable (signal): 100 cm coaxial cable (double shielded)
Connection: BNC plug (50 Ohm), power plug 3-pin for hydrophone power supply unit
Dimensions: (D × H × L) 1.8 mm × 13 mm × 86 mm
Housing: Stainless steel, PVC-C
Weight: approx. 300g
